Outside Diameter: 4mm to 2500mm(1/8”inch-120”inch)
Wall Thickness: Sch5S-SchXXS(1mm-150mm)
Material: 201, 202, 301, 304, 304L, 309S, 310, 316, 316L, 321, 410S, 420, 430, 904L, etc
Surface: Black, bright, hot rolling, hot forging, pickling white, sandblasting, peeling, rough turning, grinding, centerless grinding
Standard: JIS, AISI, ASTM, GB, DIN, EN, etc
Certification: ISO, SGS, BV
Stock: 5000 Ton/Month
Quality control: Third Part Inspection is acceptable.
Delivery Time: Within 3 days for our stock size,15-20days for our production
Contact us: +86 13373795593

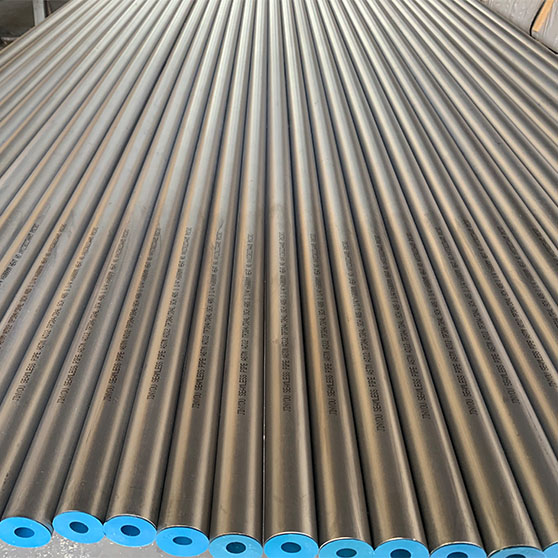

Seamless pipe
Seamless tubes are made of solid steel in the form of sheets or rods, forming a solid round shape called a "billet", which is then heated and cast on a shape such as a perforated rod to form a hollow tube or shell. Compared to other pipe manufacturing process methods, such pipes are known for their ability to withstand pressure more efficiently, as well as being fast and cost-effective. Seamless pipes are commonly used in natural gas pipelines as well as in pipelines transporting liquids. Because seamless tubes can withstand high pressures, they are also widely used in high-pressure applications, including refineries, hydraulic cylinders, the hydrocarbon industry, and oil and gas infrastructure.
In contrast to other types of pipes, seamless pipes do not require any welding or joints and are simply formed from solid billets, which increases their strength and other characteristics including corrosion resistance. According to ASME, these pipes can withstand mechanical stress more efficiently than welded pipes, known as non-seamless pipes, and have higher working pressures.
In general, the application of seamless pipe depends on the thickness of the pipe wall. Producing pipes with thicker walls requires higher temperatures, which reduces deformation resistance and leads to greater deflection.
| Product Name | Seamless Stainless Steel Pipe | |
| Standard | AISI, ASTM, DIN, JIS, BS, NB, GB | |
| Material | 201, 202 301, 302, 303, 303F, 303Cu, 304, 304L, 304H, 304F, 314 321, 316, 316L, 316Ti, 316F, 316LTi 309S, 310, 310S, 904L 409, 410, 416, 420, 430, 430F, 431, 436, 439, 441 317, 317L, 347H, 329, 630, 631, 17-4PH 2205, 2507, 2304, HASTELLOYC-276, C-22, C-2000, MONEL400, 254SMO, 253MA, Inconel1600, Inconel1625 Incoloy800, Incoloy800H, Incoloy825, Incoloy800HT GH3030, GH3039, GH2747 |
|
| Size | Round | Outer Diameter: 4mm-2500mm (3/8"-100") Thickness: 1mm-150mm(SCH10-XXS) |
| Square | Outer Diameter: 4mm*4mm-800mm*800mm Thickness: 1mm-150mm(SCH10-XXS) |
|
| Rectangular | Outer Diameter: 4mm-2500mm (3/8"-100") Thickness: 1mm-150mm(SCH10-XXS) |
|
| Length | 2m, 3m, 5m, 5.8m, 6m,11.8m, 12m,or as required | |
| Tolerance | 1. Outer Diameter: +/- 0.2mm 2. Thickness: +/- 10% OR as customer request 3. Length: +/- 10mm |
|
| Surface | Pickling white, Polished outside, Polished inside and outside, Brushed, Mirrored, Plated, Perforated | |
| Packing | 1. Plastic cap with both ends 2. Steel strip bundled package 3. Wooden case,wooden pallet package 4. As customers' requestment |
|
| Quality control | Mill Test Certificate is supplied with shipment.Third Part Inspection is also acceptable. | |
| Delivery | prompt delivery | |
| Application | petroleum, chemical industry, bolier, heat exchange, high temperature resistant transmission fluid pipe in power station, ship with pressure pipe, construction, and so on | |
| Contact | If you have any question ,please fell free to contact me ! Your inquiry will get prompt attention in 24 hours. | |
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | ≤ 0.03 | 3.5-5.5 | 16.0-18.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 16 .0-1 8.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.013 | 17.0-1 9.0 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤ 0.03 | ≤0.60 | 16.0-18.0 | - |
1. Not easily rust, acid resistance and corrosion resistance;
2. Widely used in light industry,heavy industry, daily necessities and the decoration industry;
3. Large and stable supplies, long-term supplies;
4. Prompt delivery, rich exporting experience.
| Square Tube | Rectangle Tube | ||
| Size(mm) | Wall Thickness (mm) | Size(mm) | Wall Thickness (mm) |
| 20*20 25*25 30*30 |
1.2-3.0 | 20*40 30*40 | 1.2-3.0 |
| 40*40 50*50 |
1.2-4.75 | 30*50 25*50 30*60 40*60 |
1.2-4.75 |
| 70*70 75*75 80*80 90*90 100*100 |
1.5-5.75 | 60*80 50*80 100*40 120*80 |
1.5-5.75 |
| 120*120 140*140 150*150 |
2.5-10.0 | 160*80 100*150 140*80 100*180 200*100 |
2.5-10.0 |
| 160*160 180*180 200*200 |
3.5-12.0 | 200*150 250*150 | 3.5-12.0 |
| 250*250 300*300 350*350 |
4.5-15.75 | 250*200 300*200 350*200 350*250 450*250 400*300 500*200 |
4.5-15.75 |
| 280*280 400*400 |
5.0-20.0 | 400*350 400*250 500*250 500*300 400*600 |
5.0-20.0 |
We have advanced equipment and a complete processing chain to fully guarantee product quality. Welcome everyone to consult.
The products will undergo strict quality inspection before leaving the factory to ensure quality first.
1. Advanced technology of cold draw machine
2. Advanced annealing machine
3. Better mechanical property
4. More precise dimension
5. Perfect inspection method and inspection equipment etc
Stainless steel pipes are widely used in below fields:
1. Construction building material, curtain wall bracket, guardrai/handrailing material .
2. Petroleum oil and gas transmission,coal.
3. Decoration, chemical engineering, food processing.
4. Indoor pipeline, water heater, boiler, bathtub etc.
We provide ordinary packaging for free, and can also customize packaging and logo according to buyers
Packing:
1. In bundle, black, caps, beveled ends or plain ends
2. OEM/ customer's REQUEST
3. Marks: Standard * Material*OD*WT*L *Lott No./required
Shipping:
1. Length: ≤5.85m, loaded in 20FT Container, Max 22tons
2. Length: ≤11.85m, loaded in 40 FT Container, Max 27tons
3. Length: ≥12m, shipped by bulk vessel. FILO terms
Delivery time :about 20-30 days after received deposit.
