Outside Diameter: 4mm to 2500mm(1/8”inch-120”inch)
Wall Thickness: Sch5S-SchXXS(1mm-150mm)
Material: 2205, 201, 202, 301, 304, 304L, 309S, 310, 316, 316L, 321, 410S, 420, 430, 904L, etc
Surface: Black, bright, hot rolling, hot forging, pickling white, sandblasting, peeling, rough turning, grinding, centerless grinding
Standard: JIS, AISI, ASTM, GB, DIN, EN, etc
Certification: ISO, SGS, BV
Stock: 5000 Ton/Month
Quality control: Third Part Inspection is acceptable.
Delivery Time: Within 3 days for our stock size,15-20days for our production
Contact us: +86 13373795593
Duplex 2205(UNS S31803/UNS S32205/1.4462) stainless steel exhibits excellent corrosion resistance, much higher than that of grade 316. It resists localized corrosion types like intergranular, crevice and pitting. The CPT of this type of stainless steel is around 35°C. This grade is resistant to chloride stress corrosion cracking (SCC) at temperatures of 150°C. Duplex 2205 stainless steels are apt replacements for austenitic grades, especially in premature failure environments and marine environments.
The high oxidation resistance property of Duplex 2205 is marred by its embrittlement above 300°C. This embrittlement can be modified by a full solution annealing treatment. This grade performs well at temperatures below 300°C.
The best-suited heat treatment for this grade is solution treatment (annealing), between 1020 – 1100°C, followed by rapid cooling. Duplex 2205 can be work hardened but cannot be hardened by thermal methods.
The machinability of this grade is low due to its high strength. The cutting speeds are almost 20% lower than that of grade 304. The fabrication of this grade is also affected by its strength. Bending and forming of this grade requires equipment with larger capacity. Ductility of Duplex 2205 is lesser than austenitic grades; therefore, cold heading is not possible on this grade. In order to carry out cold heading operations on this grade, intermediate annealing should be carried out.
Some of the typical applications of duplex steel Duplex 2205 are oil and gas exploration, processing equipment, transport, storage and chemical process, high chloride and marine environments, paper machines, liquor tanks, and pulp and paper digesters.
Stainless steel pipe is a hollow long round steel, which is widely used in petroleum, chemical, medical, food, light industry, machinery and instrumentation and other industrial pipelines and mechanical structural parts. In addition, when the bending and torsion strength are the same, the weight is lighter, so it is also widely used in the manufacture of mechanical parts and engineering structures. It is also often used as furniture and kitchenware.
Stainless steel pipe is a hollow long round steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial pipelines and mechanical structural parts. In addition, when the bending and torsion strength are the same, the weight is lighter, so it is also widely used in the manufacture of mechanical parts. and engineering structures. Also often used as furniture and kitchen utensils.

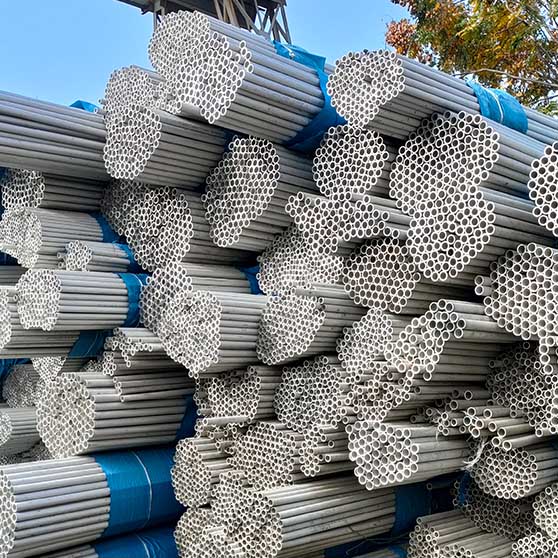

| Product Name | DUPLEX 2205(UNS S31803/UNS S32205/1.4462) PIPE | |
| Standard | AISI, ASTM, DIN, JIS, BS, NB, GB | |
| Material | 201, 202 301, 302, 303, 303F, 303Cu, 304, 304L, 304H, 304F, 314 321, 316, 316L, 316Ti, 316F, 316LTi 309S, 310, 310S, 904L 409, 410, 416, 420, 430, 430F, 431, 436, 439, 441 317, 317L, 347H, 329, 630, 631, 17-4PH 2205, 2507, 2304, HASTELLOYC-276, C-22, C-2000, MONEL400, 254SMO, 253MA, Inconel1600, Inconel1625 Incoloy800, Incoloy800H, Incoloy825, Incoloy800HT GH3030, GH3039, GH2747 |
|
| Size | Round | Outer Diameter: 4mm-2500mm (3/8"-100") Thickness: 1mm-150mm(SCH10-XXS) |
| Square | Outer Diameter: 4mm*4mm-800mm*800mm Thickness: 1mm-150mm(SCH10-XXS) |
|
| Rectangular | Outer Diameter: 4mm-2500mm (3/8"-100") Thickness: 1mm-150mm(SCH10-XXS) |
|
| Length | 2m, 3m, 5m, 5.8m, 6m,11.8m, 12m,or as required | |
| Tolerance | 1. Outer Diameter: +/- 0.2mm 2. Thickness: +/- 10% OR as customer request 3. Length: +/- 10mm |
|
| Surface | Pickling white, Polished outside, Polished inside and outside, Brushed, Mirrored, Plated, Perforated | |
| Packing | 1. Plastic cap with both ends 2. Steel strip bundled package 3. Wooden case,wooden pallet package 4. As customers' requestment |
|
| Quality control | Mill Test Certificate is supplied with shipment.Third Part Inspection is also acceptable. | |
| Delivery | prompt delivery | |
| Application | petroleum, chemical industry, bolier, heat exchange, high temperature resistant transmission fluid pipe in power station, ship with pressure pipe, construction, and so on | |
| Contact | If you have any question ,please fell free to contact me ! Your inquiry will get prompt attention in 24 hours. | |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 2205 | 0.03 max | 2 max | 1.0 max | 0.03 max | 0.02 max | 21.0 – 23.0 | 2.5 – 3.5 | 4.5 – 6.5 | 0.08~0.2 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 2205 | 8.0 g/cm3 | 1400 °C (2550 °F) | 90 | 65 | 25% |
1. ASTM/ASME: A240 UNS S32205/S31803
2.EURONORM: 1.4462 X2CrNiMoN 22.5.3
3.AFNOR: Z3 CrNi 22.05 AZ
4.DIN: W.Nr 1.4462
1.Corrosion Resistance: 2205 stainless stands-up excellently in a range of atmospheric environments even when exposed to corrosive elements, specifically to sea water.
2.Heat Resistance: Generally, 2205 is not suitable for use at temperatures above 300°C as it suffers from precipitation of brittle micro-constituents.
3.Avoid temperatures below -50°C because of its ductile-to-brittle-transition.
4.Easy to weld with excellent weldability.
5.The high strength of 2205 also makes bending and forming more difficult.
1.Not easily rust, acid resistance and corrosion resistance;
2.Widely used in light industry,heavy industry, daily necessities and the decoration industry;
3.Large and stable supplies, long-term supplies;
4.Prompt delivery, rich exporting experience.
| Square Tube | Rectangle Tube | ||
| Size(mm) | Wall Thickness (mm) | Size(mm) | Wall Thickness (mm) |
| 20*20 25*25 30*30 |
1.2-3.0 | 20*40 30*40 | 1.2-3.0 |
| 40*40 50*50 |
1.2-4.75 | 30*50 25*50 30*60 40*60 |
1.2-4.75 |
| 70*70 75*75 80*80 90*90 100*100 |
1.5-5.75 | 60*80 50*80 100*40 120*80 |
1.5-5.75 |
| 120*120 140*140 150*150 |
2.5-10.0 | 160*80 100*150 140*80 100*180 200*100 |
2.5-10.0 |
| 160*160 180*180 200*200 |
3.5-12.0 | 200*150 250*150 | 3.5-12.0 |
| 250*250 300*300 350*350 |
4.5-15.75 | 250*200 300*200 350*200 350*250 450*250 400*300 500*200 |
4.5-15.75 |
| 280*280 400*400 |
5.0-20.0 | 400*350 400*250 500*250 500*300 400*600 |
5.0-20.0 |
We have advanced equipment and a complete processing chain to fully guarantee product quality. Welcome everyone to consult.
The products will undergo strict quality inspection before leaving the factory to ensure quality first.
1) Advanced technology of cold draw machine
2) Advanced annealing machine
3) Better mechanical property
4) More precise dimension
5) Perfect inspection method and inspection equipment etc
Stainless Steel Coil are widely used in below fields:
1.Construction building material, curtain wall bracket, guardrai/handrailing material .
2.Petroleum oil and gas transmission,coal.
3.Decoration, chemical engineering, food processing.
4.Indoor pipeline, water heater, boiler, bathtub etc.
We provide ordinary packaging for free, and can also customize packaging and logo according to buyers
Packing:
1.In bundle, black, caps, beveled ends or plain ends
2.OEM/ customer's REQUEST
3.Marks: Standard * Material*OD*WT*L *Lott No./required
Shipping:
1. Length: ≤5.85m, loaded in 20FT Container, Max 22tons
2. Length: ≤11.85m, loaded in 40 FT Container, Max 27tons
3. Length: ≥12m, shipped by bulk vessel. FILO terms
Delivery time :about 20-30 days after received deposit.
