Thickness: 0.1~16mm,or as customer’s requirements
Width: 10-2000mm or as customer’s requirements
Material: Material: 2205 201 304 321 316 316L 430, etc
Surface: N0.1, N0.4, 2D, 2B, HL, BA, 6K, 8K, Mirror,etc
Standard: JIS, AISI, ASTM, GB, DIN, EN, etc
Certification: ISO, SGS, BV
Stock: 5000 Ton/Month
Quality control: Third Part Inspection is acceptable.
Delivery Time: Within 3 days for our stock size,15-20days for our production
Contact us: +86 13373795593

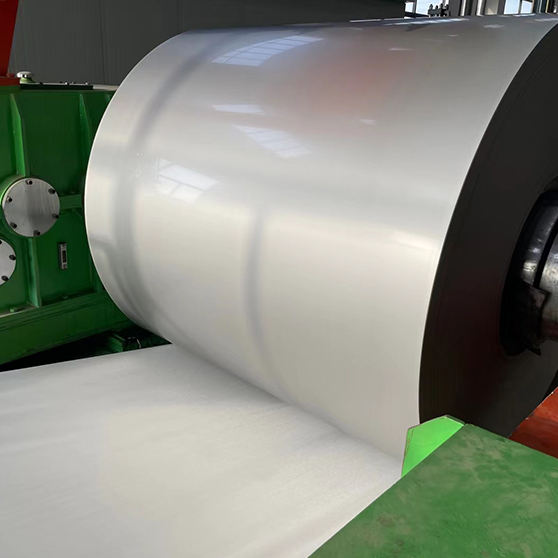

Duplex 2205(UNS S31803/UNS S32205/1.4462) is a nitrogen enhanced duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series stainless steels. “Duplex” describes a family of stainless steels that are neither fully austenitic, like 304 stainless, nor purely ferritic, like 430 stainless. The structure of 2205 duplex stainless steel consists of austenite pools surrounded by a continuous ferrite phase. In the annealed condition, 2205 contains approximately 40-50% ferrite. Often referred to as the work horse grade, 2205 is the most widely used grade in the duplex family of stainless steels.
| Product | DUPLEX 2205(UNS S31803/UNS S32205/1.4462) COIL |
| Width | 10-2000mm or as customer's requirements |
| Thickness | 0.1~16mm,or as customer's requirements |
| Surface | N0.1, N0.4, 2D, 2B, HL, BA, 6K, 8K, Mirror,etc |
| Material | 201, 202 301, 302, 303, 303F, 303Cu, 304, 304L, 304H, 304F, 314 321, 316, 316L, 316Ti, 316F, 316LTi, 309S, 310, 310S, 904L 409, 410, 416, 420, 430, 430F, 431, 436, 439, 441 317, 317L, 347H, 329, 630, 631, 17-4PH 2205, 2507, 2304, HASTELLOYC-276, C-22, C-2000, MONEL400, 254SMO, 253MA, Inconel1600, Inconel1625, Incoloy800, Incoloy800H, Incoloy825, Incoloy800HT GH3030, GH3039, GH2747 |
| Standards | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Certifications | ISO, SGS, BV |
| Packing | Industry standard packaging or according to client's requirement |
| Delivery time | Within 3 days for our stock size,15-20days for our production |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.03 max | 2 max | 1.0 max | 0.03 max | 0.02 max | 21.0 – 23.0 | 2.5 – 3.5 | 4.5 – 6.5 | 0.08~0.2 |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | 90 | 65 | 25% |
1. ASTM/ASME: A240 UNS S32205/S31803
2.EURONORM: 1.4462 X2CrNiMoN 22.5.3
3.AFNOR: Z3 CrNi 22.05 AZ
4.DIN: W.Nr 1.4462
1.Corrosion Resistance: 2205 stainless stands-up excellently in a range of atmospheric environments even when exposed to corrosive elements, specifically to sea water.
2.Heat Resistance: Generally, 2205 is not suitable for use at temperatures above 300°C as it suffers from precipitation of brittle micro-constituents.
3.Avoid temperatures below -50°C because of its ductile-to-brittle-transition.
4.Easy to weld with excellent weldability.
5.The high strength of 2205 also makes bending and forming more difficult.
| Surface Finish | Definition | Application |
| 2B | Finished by heat treatment , picking or equipvalent cold rolling , followed by skin pass to obtain adequate luster surface. | With bright and smooth surface ,easy for further grinding to obtain brighter surface ,suitable for medical instruments ,milk containers ,tableware and so on. |
| BA | Bright heat treatment after cold rolling. | Structual members .etc.kitchen utensil ,cutlery ,eleltric applicances ,medical instruments ,building decorations ,etc. |
| NO.3/NO.4 | Polished with No.150-240 abrasives. | Milky food processing equipment , medicalinstruments ,building decorations. |
| HL | Finshed by polishing with abrasives of suitable grain size to obtain continuous streaks. | Building decorations ,such as elevators ,escalators ,door etc. |
| 6K/8K | A mirror-like reflective surface ,which is obtained by polishing with successively finer abrasives and buffing extensively with all gritlines are removed. | Buliding entrances,bulkding column casting ,elevator's wall doors, counters,sculptur |
We have strict quality control before our products go out, And we have all kinds of board production equipment, you can meet your various needs.
1. Wide Specifications Range;
2. Pure steel chemical composition;
3. Outstanding mechanical properties;
4. Good performance after welding;
5. Good shape and high precision;
6. Excellent corrosion-resistant and long service life.
Duplex 2205(UNS S31803/UNS S32205/1.4462) coils are widely used in below fields:
1. Chemical process vessels, piping and heat exchangers
2. Pulp mill digesters, bleach washers, chip pre-steaming vessels
3. Food processing equipment
4. Oil field piping and heat exchangers
5. Flue gas desulfurization equipment
We provide ordinary packaging for free, and can also customize packaging and logo according to buyers. Our common package are as below:
1. Coils covered with wooden plate for protection in transportation.
2. All coils will be loaded in strong wooden packages.
3. Every cartons loaded with good shoring and strengthening.
4. Take container loading pictures and seal the container.
5. Transportation speed is quick. And keep customer each step informed.
