Thickness: 0.1 mm-250 mm
Width: 50 mm-3500 mm
Material: 201, 202, 301, 304, 304L, 309S, 310, 316, 316L, 321, 410S, 420, 430, 904L, etc
Standard: AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc
Certification: ISO SGS BV
Surface: BA, 2B, 4K, 6K, 8K, NO.4, HL, Embossed, Perforated, Pickling white, polished outside, polished inside and outside
Stock: 8000 Ton/Month
PVC: 0.08 mm black/white PVC, Double blue PE, 0.1 mm laser PVC
Contact us: +86 13373795593
420 stainless steel is a kind of martensiform stainless steel, with certain wear resistance and corrosion resistance, higher hardness characteristics, suitable for all kinds of precision machinery, bearings, electrical, equipment, instruments, meters, transportation vehicles, household appliances, etc. Mainly used in the manufacture of atmospheric, water vapor, water and oxidizing acid corrosion parts.
420 has a certain wear resistance and corrosion resistance, high hardness, its price is a lower class of stainless steel ball, suitable for the general requirements of stainless steel working environment.
This is the most cost effective grade of steel. So the 420 Stainless Steel Sheet Price is lower compared to other grades of stainless steels and all metallic products in general. There are different versions of the material with low carbon and high carbon content. The low carbon version, 420 sheets are very good for welding applications as they have less carbide precipitation and less localized corrosion.
| Product | 420 Stainless Steel Sheet |
| Surface Finish | BA, 2B, 4K, 6K, 8K, NO.4, HL, Embossed, Perforated, Pickling white, Polished outside, Polished inside and outside |
| Technique | Hot Rolled / Cold Rolled |
| Standard | AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc |
| Width | 500mm/1000mm/1219mm/1250mm/1500mm/1800mm/2000mm/2200mm/2500mm/3000mm/3500mm, or as required |
| Length | 500mm/1000mm/2000mm/2438mm/2500mm/3000mm/6000mm/8000mm—13000mm, or as required |
| Thickness | 0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0/6.0/8.0/10.0/12.0/14.0/16.0—250mm, or as required |
| Material | 201, 202 301, 302, 303, 303F, 303Cu, 304, 304L, 304H, 304F, 314 321, 316, 316L, 316Ti, 316F, 316LTi 309S, 310, 310S, 904L 409, 410, 416, 420, 430, 430F, 431, 436, 439, 441 317, 317L, 347H, 329, 630, 631, 17-4PH 2205, 2507, 2304, HASTELLOYC-276, C-22, C-2000, MONEL400, 254SMO, 253MA, Inconel1600, Inconel1625 Incoloy800, Incoloy800H, Incoloy825, Incoloy800HT GH3030, GH3039, GH2747 |
| Color | Standard RAL color: Red, Blue, White, Grey, Brick, etc. |
| Stock Dimension | Cold Rolled: 0.4-6.0mm*1000*2000mm/ 1220*2440mm/ 1250*2500mm/ 1500*3000mm, or as your request Hot Rolled: 3.0-16.0mm*1250*2500mm/ 1500*3000mm/ 1500*6000mm/ 1800*6000mm/ 2000*6000mm, or as your request Thick Sheet: 6.0mm-80mm*width*length, as your request Mirror: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable Hairline: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable Color Coating: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable Sandblasting: 0.4-1.5mm*1000*2000mm/ 1219*2438mm and other customize size workable |
| Service | OEM, Customized processing service, Customized fabrication by drawings |
| Processing Type | Cutting, Bending, Stamping, Welding, CNC machining |
| Cutting Type | Laser cutting; Water-jet cutting; Flame cutting |
| Protection | 1. Inter paper available 2. PVC protecting film available |
| Application | Costruction Industry/ Kichten Products/ Fabrication Industry/ Home Decoration |
| Grade | C | Mn | P | S | Si | Cr | Ni | Mo |
| SS 420 | 0.15 min | 1 | 0.04 | 0.03 | 1 | 12.00-14.00 | 0.75 max | 0.50 max |
| STANDARD | WERKSTOFF NR. | UNS | EN | BS | AFNOR | SIS | JIS | AISI |
| SS 420 | 1.4021 | S42010 | X20Cr13 | 420S29 / 420S37 | – | 2303 | SUS420J1 | 420 |
| Grades | Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| SS 420 | 7.8 g/cm3 | MPa – 380 | MPa – 170 | 20% | Rockwell B (HR B)- 88 / Brinell (HB)- 0.5t |
We have imported equipment and professional engineers, so that the surface of each our stainless steel plate is far higher than customer expectations.

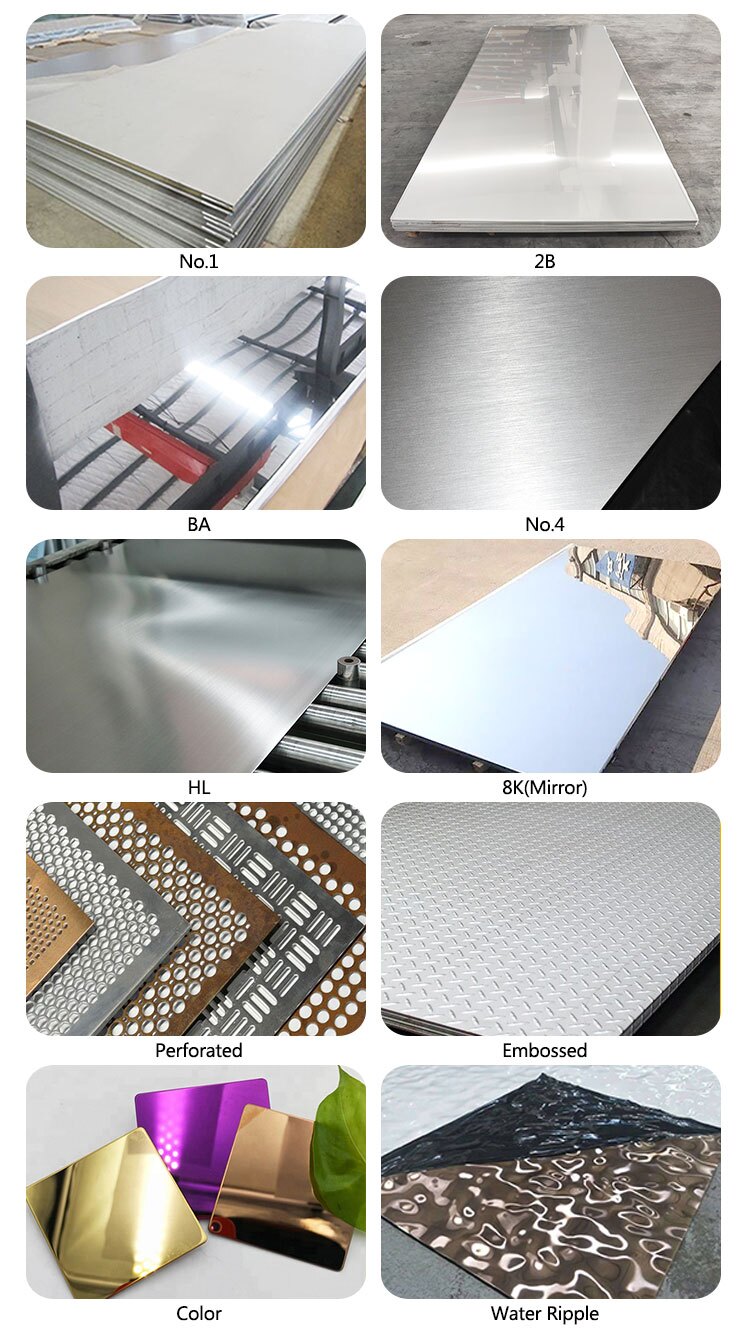

| Surface | Characteristic | Processing Technology |
| N0.1 | Original | Pickled after hot rolling |
| 2D | Blunt | Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling |
| 2B | Blurred | Hot rolling + annealing shot peening pickling + cold rolling + annealing pickling + tempering rolling |
| N0.3 | Matte | Polishing and tempering rolling with 100-120 mesh abrasive materials |
| N0.4 | Matte | Polishing and tempering rolling with 150-180 mesh abrasive material |
| NO.240 | Matte | Polishing and tempering rolling with 240 mesh abrasive materials |
| NO.320 | Matte | Polishing and tempering rolling with 320 mesh abrasive materials |
| NO.400 | Matte | Polishing and tempering rolling with 400 mesh abrasive materials |
| HL | Brushed | Grind the surface of the steel belt with an appropriate grinding grain size to make it show a certain longitudinal texture |
| BA | Bright | The surface is annealed and shows high reflectivity |
| 6K | Mirror | Rough grinding and polishing |
| 8K | Mirror | Fine grinding and polishing |
We have imported equipment, 20,000 tons of inventory, professional masters, and a clean environment. Customer satisfaction is the basis of our service. If you need stainless steel materials, please contact our professional sales as soon as possible. They will give you the fastest. We make the most professional and reasonable quotation at the speed of our company, and look forward to our long-term cooperation as soon as possible.

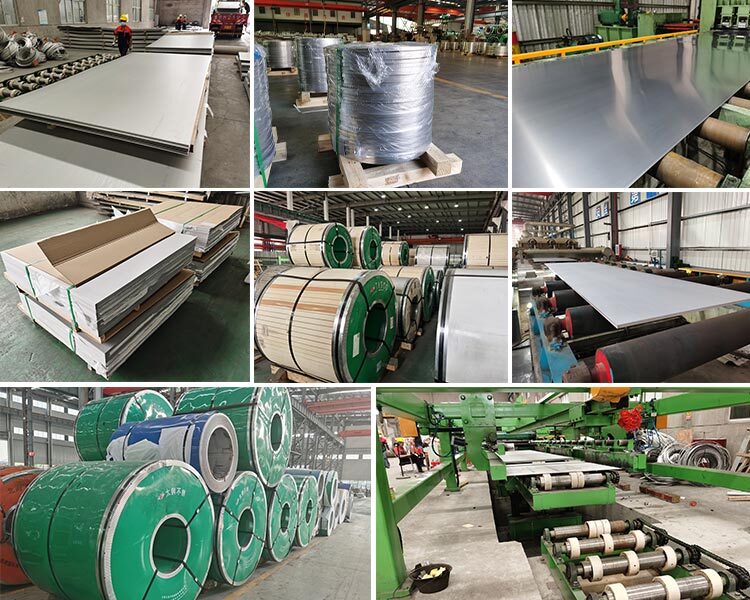

We have all kinds of board production equipment, you can meet your various needs
1. Wide Specifications Range;
2. Pure steel chemical composition;
3. Outstanding mechanical properties;
4. Good performance after welding;
5. Good shape and high precision;
6. Excellent corrosion-resistant and long service life.
Stainless Steel Sheet are widely used in below fields:
1.Construction field, shipping building industry;
2.Petroleum and Chemical Industries;
3.Food and Mechanical Industries;
4.Boiler Heat Exchange;
5.Machinery and Hardware Industries.

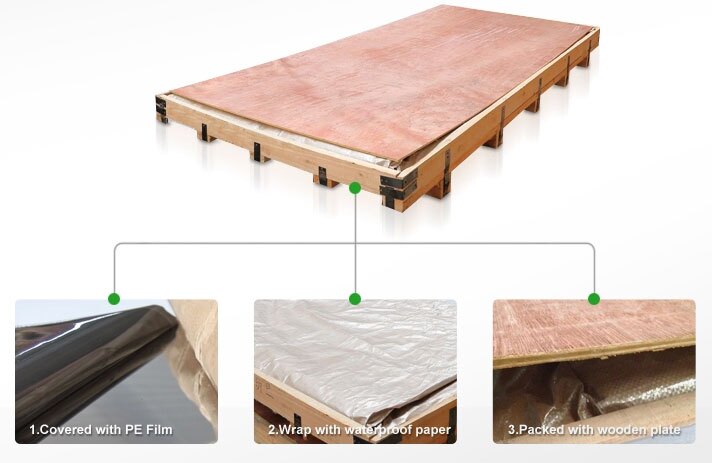

1. Sheets covered with wooden plate for protection in transportation;
2. All sheets will be loaded in strong wooden packages;
3. Every cartons loaded with good shoring and strengthening;
4. Take container loading pictures and seal the container;
5. Transportation speed is quick. And keep customer each step informed.
