Size: 3mm*20mm*20mm~12mm*100mm*100mm, or customized
Thickness: 0.24mm-60mm, or customized
Length: 6m, 5.8m, 3m, or customized
Material: 201 304 321 316 316L 430, etc
Standard: JIS, AISI, ASTM, GB, DIN, EN, etc
Certification: ISO, SGS, BV
Stock: 5000 Ton/Month
Quality control: Third Part Inspection is acceptable.
Delivery Time: Within 3 days for our stock size,15-20days for our production
Contact us: +86 13373795593

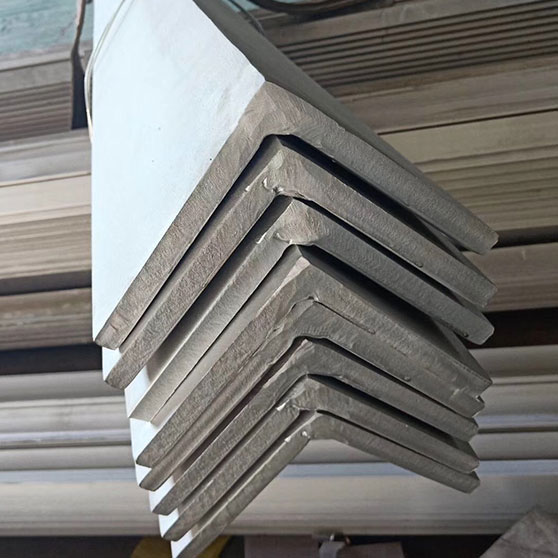

Alloy 321 (UNS S32100) is stabilized stainless steel angle bar which offers as its main advantage an excellent resistance to intergranular corrosion following exposure to temperatures in the chromium carbide precipitation range from 800 to 1500°F (427 to 816°C). Alloy 321 stainless steel angle bar is stabilized against chromium carbide formation by the addition of titanium.
Alloy 321 stainless steel angle bar is also advantageous for high temperature service because of its good mechanical properties. Alloy 321 stainless steel angle bar offers higher creep and stress rupture properties than Alloy 304 and, particularly, Alloy 304L which might also be considered for exposures where sensitization and intergranular corrosion are concerns
| Product Name: | 321 Stainless Steel Angle Bar |
| Material: | 201, 202 301, 302, 303, 303F, 303Cu, 304, 304L, 304H, 304F, 314 321, 316, 316L, 316Ti, 316F, 316LTi 309S, 310, 310S, 904L 409, 410, 416, 420, 430, 430F, 431, 436, 439, 441 317, 317L, 347H, 329, 630, 631, 17-4PH 2205, 2507, 2304, HASTELLOYC-276, C-22, C-2000, MONEL400, 254SMO, 253MA, Inconel1600, Inconel1625 Incoloy800, Incoloy800H, Incoloy825, Incoloy800HT GH3030, GH3039, GH2747 |
| Standard: | GB, ASTM, JIS, SUS, DIN, EN etc |
| Specification: | 1. Size : 3mm*20mm*20mm~12mm*100mm*100mm, or customized; 2. Thickness:0.24mm-60mm, or customized; 3. Length: 6m,5.8m,3m, or customized; 4. Color: Silver, Gold, Black, Champagne; 5. Surface Finished:Mirror,Hairline,No.4,Satin,Virbation. |
| Service: | 1.Free sample; 2.OEM & ODM; 3.On line service; 4.New design solution. |
| Application: | 1. For protecting & decorating the edges of ceramic tiles, backsplash, mirror, door, furniture, bathroom, kitchen, living room, house, hotel, wall, floor, shopping mall, KTV, hospital, office building , etc; 2. Protection for corner, tile edge, furniture border, door edge, stair edge, floor gap, glass holder profile, etc. |
| Delivery Time: | Within 3 days for our stock size,15-20days for our production |
| Payment: | 30%T/T in advance, the balance before shipment |
| Package: | Wooden Pallet or Case |
| Contact | If you have any question ,please fell free to contact me ! Your inquiry will get prompt attention in 24 hours. |
| Remarks: | 1.Different thickness , different surface processing make different price; 2.Pattern, size and color could be customized according to your requirements. |
| Grade | Density | Specific Heat | Modulus of Elasticity | Thermal Conductivity 200°F | Melting Range | Electrical Resistivity |
| 321 | 0.286 lbs/in3 7.920 g/cm3 |
0.12 BTU/lb-°F (32 – 212°F) 444 J/kg-°K (0 – 100°C) |
28.0 x 106 psi 193 GPa |
9.3 BTU/hr/ft2/ft/°F 16.0 W/m-°K |
2550 – 2635°F 1398 – 1446°C |
Thermal Cond72 Microhm-cm at 20°Fuctivity 200°F (100°C) |
Our main stainless steel profile products are as below:
| Equal Angle Specification | |||
| Specification (mm) |
Theoretical weight (kg/m) |
Specification (mm) |
Theoretical weight (kg/m) |
| 25*25*2.5 | 0.98 | 90*90*7 | 9.59 |
| 25*25*3 | 1.12 | 90*90*8 | 10.90 |
| 30*30*2.5 | 1.17 | 90*90*9 | 9.59 |
| 30*30*3 | 1.36 | 90*90*10 | 13.30 |
| 30*30*4 | 1.78 | 100*100*6 | 9.22 |
| 30*30*5 | 2.16 | 100*100*7 | 10.70 |
| 38*38*3 | 1.72 | 100*100*8 | 12.1 |
| 38*38*4 | 2.26 | 100*100*10 | 14.90 |
| 40*40*3 | 1.83 | 100*100*12 | 17.90 |
| 40*40*4 | 2.41 | 100*100*13 | 19.10 |
| 40*40*5 | 2.92 | 110*110*7 | 11.92 |
| 40*40*6 | 3.50 | 110*110*8 | 13.47 |
| 45*45*4 | 2.74 | 110*110*10 | 16.69 |
| 45*45*5 | 3.38 | 125*125*8 | 15.51 |
| 50*50*3 | 2.33 | 125*125*10 | 19.14 |
| 50*50*4 | 3.06 | 125*125*12 | 22.70 |
| 50*50*5 | 3.77 | 130*130*9 | 17.90 |
| 50*50*6 | 4.43 | 130*130*10 | 19.70 |
| 50*50*8 | 5.82 | 130*130*12 | 23.40 |
| 55*55*5 | 4.17 | 130*130*15 | 28.80 |
| 56*56*4 | 3.493 | 140*140*10 | 21.49 |
| 56*56*5 | 4.326 | 140*140*12 | 25.52 |
| 60*60*4 | 3.68 | 140*140*14 | 29.49 |
| 60*60*5 | 4.55 | 150*150*12 | 27.30 |
| 60*60*6 | 5.41 | 150*150*15 | 33.60 |
| 60*60*8 | 7.09 | 150*150*16 | 35.80 |
| 63*63*5 | 4.81 | 160*160*12 | 29.39 |
| 63*63*6 | 5.72 | 160*160*14 | 33.99 |
| 63*63*7 | 6.54 | 160*160*16 | 38.52 |
| 65*65*5 | 5.00 | 175*175*12 | 31.80 |
| 65*65*6 | 5.91 | 175*175*15 | 39.40 |
| 65*65*8 | 7.66 | 180*180*12 | 33.16 |
| 70*70*5 | 5.76 | 180*180*14 | 38.38 |
| 70*70*6 | 6.38 | 180*180*16 | 43.54 |
| 70*70*7 | 7.35 | 180*180*18 | 48.63 |
| 70*70*8 | 8.37 | 200*200*14 | 42.90 |
| 75*75*6 | 6.85 | 200*200*15 | 45.30 |
| 75*75*8 | 8.92 | 200*200*18 | 54.40 |
| 75*75*9 | 9.96 | 200*200*20 | 59.70 |
| 75*75*10 | 11.02 | 200*200*25 | 73.60 |
| 80*80*6 | 7.32 | 250*250*20 | 76.18 |
| 80*80*7 | 8.48 | 250*250*25 | 93.77 |
| 80*80*8 | 9.55 | 250*250*28 | 104.00 |
| 80*80*10 | 11.87 | 250*250*30 | 111.32 |
| 90*90*6 | 8.28 | 250*250*35 | 128.00 |
Our processing process is strict and precise, and can be customized according to customer needs.
The products will undergo strict quality inspection before leaving the factory to ensure quality first.
1. Advanced technology of cold draw machine;
2. Advanced annealing machine;
3. Better mechanical property;
4. More precise dimension;
5. Perfect inspection method and inspection equipment, etc.
Stainless steel angle bars are widely used in below fields:
1. Purlin, wall beam;
2. Roof truss, bracket;
3. Steel structure work shop;
4. Glass card slot;
5. The highway pillar;
6. Solar Stand;
7. Mineral bracket transmission tower;
8. Bridge frame.
We provide ordinary packaging for free, and can also customize packaging and logo according to buyers.
Packaging: Standard export seaworthy packing, such as: bare packing, bundle packing, wooden carton packing or as every customer's requirement.
Shipping: We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
