Length:1000mm~8000mm or customized
Height: 50mm~2000mm or customized
Thickness: 0.24mm-60mm, or customized
Material: 201 304 321 316 316L 430, etc
Standard: JIS, AISI, ASTM, GB, DIN, EN, etc
Certification: ISO, SGS, BV
Stock: 5000 Ton/Month
Quality control: Third Part Inspection is acceptable.
Delivery Time: Within 3 days for our stock size,15-20days for our production
Contact us: +86 13373795593
Alloy 316/316L resists atmospheric corrosion, as well as, moderately oxidizing and reducing environments. It also resists corrosion in polluted marine atmospheres. The alloy has excellent resistance to intergranular corrosion in the as-welded condition. Alloy 316/316L has excellent strength and toughness at cryogenic temperatures.
Alloy 316/316L is non-magnetic in the annealed condition, but can become slightly magnetic as a result of cold working or welding. It can be easily welded and processed by standard shop fabrication practices.

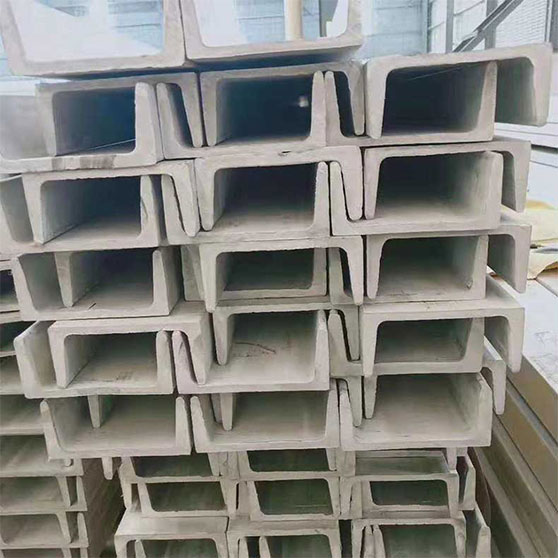

| Product Name: | 316 316L Stainless Steel U Channel |
| Material: | 201, 202 301, 302, 303, 303F, 303Cu, 304, 304L, 304H, 304F, 314 321, 316, 316L, 316Ti, 316F, 316LTi 309S, 310, 310S, 904L 409, 410, 416, 420, 430, 430F, 431, 436, 439, 441 317, 317L, 347H, 329, 630, 631, 17-4PH 2205, 2507, 2304, HASTELLOYC-276, C-22, C-2000, MONEL400, 254SMO, 253MA, Inconel1600, Inconel1625 Incoloy800, Incoloy800H, Incoloy825, Incoloy800HT GH3030, GH3039, GH2747 |
| Standard: | GB ASTM, JIS, SUS, DIN, EN etc |
| Specification: | 1. Length:1000mm~8000mm or customized 2. Height: 50mm~2000mm or customized 3. Thickness:0.24mm-60mm, or customized 4. Surface Finished:Pickling white, Polished outside, Polished inside and outside, Brushed, Mirrored, Plated, Perforated |
| Service: | 1. Free sample; 2. OEM & ODM; 3. On line service; 4. New design solution |
| Application: | 1. For protecting & decorating the edges of ceramic tiles, backsplash, mirror, door, furniture, bathroom, kitchen, living room, house, hotel, wall, floor, shopping mall, KTV, hospital, office building , etc; 2. Protection for corner, tile edge, furniture border, door edge, stair edge, floor gap, glass holder profile, etc |
| Delivery Time: | Within 3 days for our stock size,15-20days for our production |
| Payment: | 30%T/T in advance, the balance before shipment |
| Package: | Wooden Pallet or Case |
| Contact | If you have any question ,please fell free to contact me ! Your inquiry will get prompt attention in 24 hours |
| Remarks: | 1. Different thickness , different surface processing make different price 2. Pattern, size and color could be customized according to your requirements |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 MPa – 515 |
Psi – 30000 MPa – 205 |
35% |
Our main stainless steel profile products are as below:
For the unit weight and tolerance of channel bar, below chart can reference.
Our processing process is strict and precise, and can be customized according to customer needs.
The products will undergo strict quality inspection before leaving the factory to ensure quality first
Stainless steel U channels are widely used in below fields:
1. Purlin, wall beam;
2. Roof truss, bracket;
3. Steel structure work shop;
4. Glass card slot;
5. The highway pillar;
6. Solar Stand;
7. Mineral bracket transmission tower;
8. Bridge frame.
We provide ordinary packaging for free, and can also customize packaging and logo according to buyers.
Packaging: Standard export seaworthy packing, such as: bare packing, bundle packing, wooden carton packing or as every customer's requirement.
Shipping: We have long-term cooperation with many experienced shipping companies and will find the most suitable mode of transportation for you.
